Easy And Safe Suspension – A Great Visual Experience.
Without LED Screens, almost no event would have the same impact on spectators. Check out Milos products to make it even easier to hang your LED screen, and make all your events a great visual spectacle. Easily, quickly, and safely.

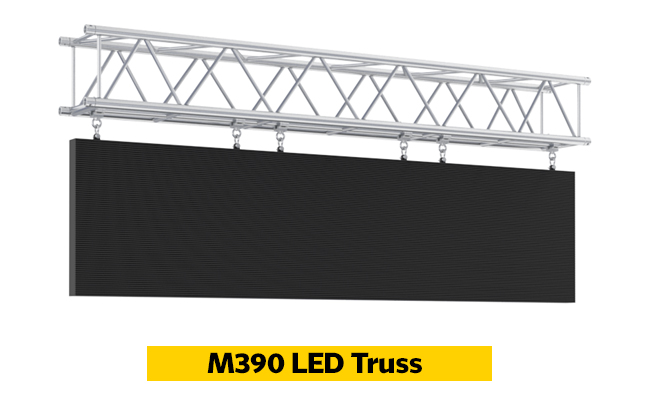

M390 LED Truss
Wherever the venue, whatever the event, hanging an LED screen in the truss’ centre of gravity is absolutely crucial. The MILOS M390 LED Truss features a central chord, allowing the possibility of using clamps to secure the LED screen.
- Features a central bar for the safe, easy and balanced hanging of LED screens
- Available in 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 4m and 5m lengths
- Quick, simple and secure assembly
- Connection kit supplied with every truss length and junction
- Compatible with 200/400/500 series cell clamps
- Powder coat colour finish available on request

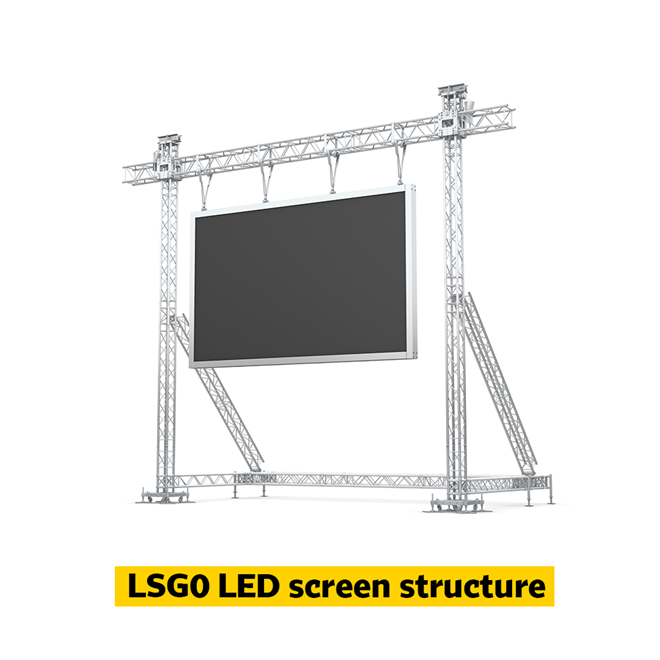

LSG0 LED Screen Support Structures
- Compact self climbing LED tower with integrated ballast platform
- MT1 towers with central M390 bridge & M290 rear stabilising base frame
- Obstruction free viewing for audience
- Operate with manual chain block or electric chain hoist
- Fast connection for quick, simple and secure assembly
- Full structural calculation report & build manual available
- Cantilever Line Array arms
- Powder coat colour finish available on request

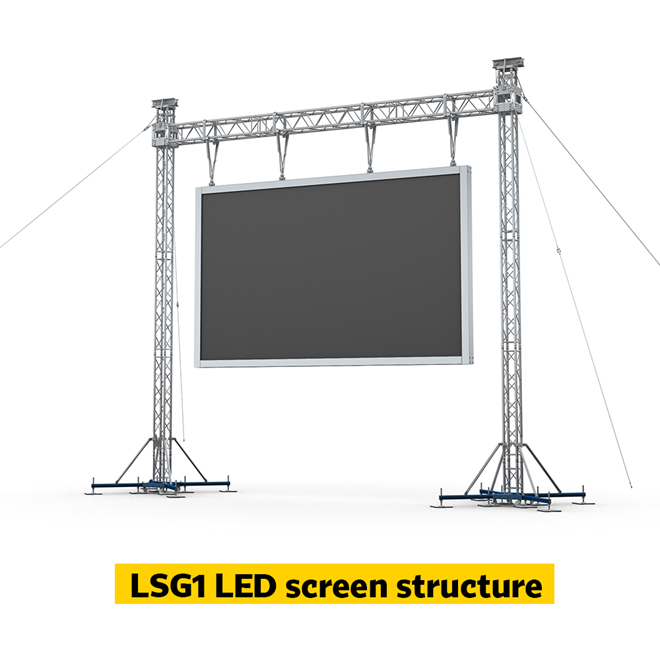

LSG1 LED Screen Support Structure
- MT Tower LED Screen Support solution
- Wide range of system options available to suit specific screen size & weight
- Self-climbing towers (MT1 / MT2 / MT3) with electric or manual hoists
- Fast connection for quick, simple and secure assembly
- Guy wire connection points for additional stabilisation
- Cheapest LSG concept available
- Powder coat colour finish available on request

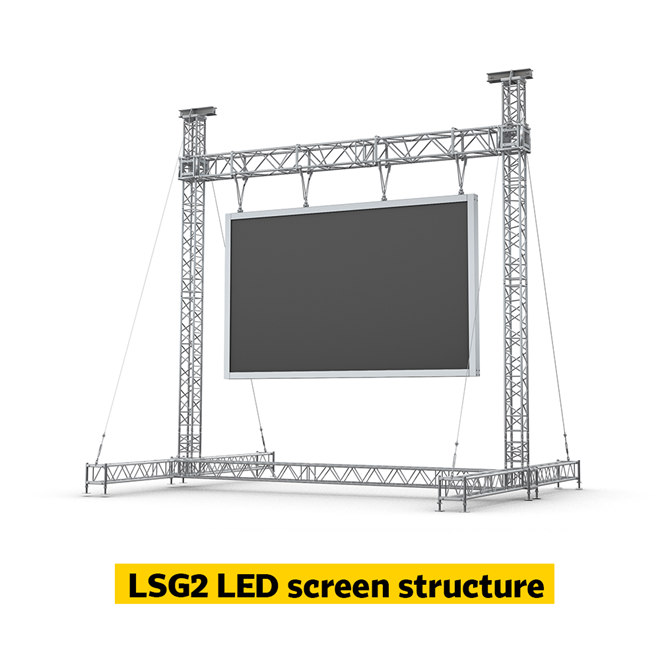

LSG2 LED Screen Structure
- Free-standing MT Tower LED Screen Support solution
- Wide range of system options available to suit specific screen size & weight
- Self-climbing towers (MT1 / MT2 / MT3) with electric or manual hoists
- Screwjack feet for quick & easy levelling
- Fast connection for quick, simple and secure assembly
- Stabilisation via front & back integrated cross tension wires
- Powder coat colour finish available on request

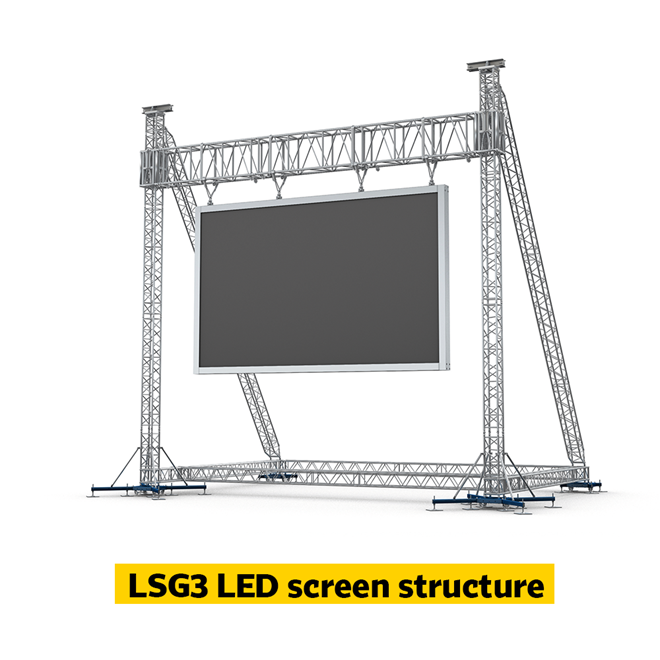

LSG3 LED Screen Structure
• Large format MT Tower LED Screen Support solution
• Various system options available to suit specific screen size & weight
• Self-climbing towers (MT1 / MT2 / MT3) with electric or manual hoists
• Rear base frame & diagonal stabilizer provide obstruction-free viewing
• Powder coat colour finish available on request

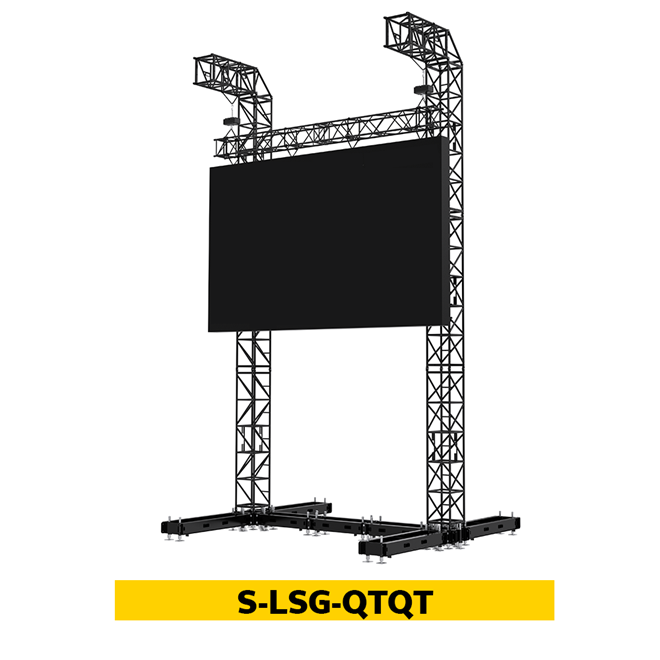

S-LSG-QTQT Steel Truss LED Screen Structure
- Safely and securely support the extreme weight of your large LED displays (up to 3,000kg and 60 m2 screen) with our Steel LED Tower!
- Special steel alloy that provides a nearly 3x more strength compared to standard S235 Steel
- Integrated forklift pockets for convenient transport
- Durable, industrial black paint finish as standard on all truss and tower modules
- Due to the use of our integrated steel base with outriggers (3m outriggers at front/back and base to base connection based on length of screen), no guy wires from tower to base are necessary.
- Wind loading of secured structure is up to 28m/second. In case of high wind speeds, the LED screen must be lowered to the ground and connected to the top of the tower.
Milos, a brand with 25+ years’ experience with fast, flexible, and affordable quality solutions.
“MILOS. Works Better”
